You’ll find that quality control in OEM cymbal production requires far more precision than most musicians realize. From the initial raw material selection to the final performance evaluation, each step demands exacting standards and sophisticated testing protocols. The metallurgical composition must be perfect, the forming process precise, and the tonal characteristics consistent. Let’s examine how these critical elements come together to create professional-grade cymbals.
Key Takeaways
Rigorous metallurgical testing ensures precise copper-tin ratios and trace elements meet strict standards for optimal cymbal composition.
Temperature-controlled casting maintains consistent alloy temperatures between 2100-2200°F using digital thermocouples and computerized monitoring systems.
Digital thickness mapping and ultrasonic sensors verify uniform shape formation and proper hammering patterns across cymbal surfaces.
Comprehensive sonic testing measures frequency response, sound projection, and tonal characteristics in controlled acoustic environments.
Systematic visual inspections check for surface defects, lathing consistency, and finish quality under bright directional lighting.
Raw Material Selection and Testing

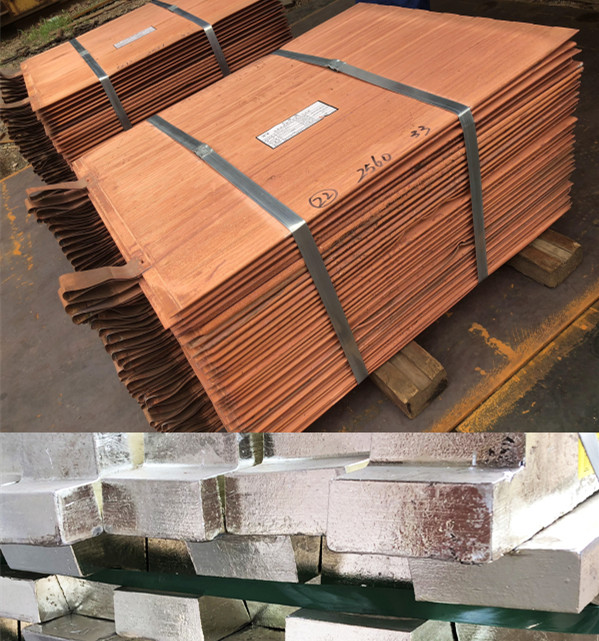

Because cymbal alloy composition directly affects sound quality, we begin our quality control process with rigorous materials testing. You’ll find our sourcing strategies focus primarily on procuring high-grade copper and tin, with precise metallurgical analysis conducted on every incoming batch. We test for exact percentages of trace elements and verify the absence of contaminants that could compromise material durability.
Our lab technicians perform multiple tests on sample pieces, including spectrographic analysis, hardness measurements, and grain structure evaluations. Through X-ray fluorescence, we confirm the exact ratios of copper (79-80%) and tin (19-20%), ensuring consistency across all shipments. We’ve developed strict acceptance criteria – any material failing to meet our specifications gets rejected immediately.
For specialty alloys containing silver or phosphorus additives, we conduct additional resonance testing to verify acoustic properties before approving materials for production use.
Precision Alloy Mixing Standards
You’ll need to meticulously analyze your copper-tin ratios through X-ray fluorescence spectroscopy to maintain the 80/20 bronze standard for professional-grade cymbals. Your quality control lab must verify trace elements like silver, zinc, and phosphorus remain within acceptable parts-per-million tolerances to guarantee consistent acoustic properties. Testing each batch of molten alloy before casting helps you catch and correct any compositional deviations that could compromise the final product’s sound characteristics.
Copper-Tin Ratio Testing
The precision mixing of copper and tin alloys represents a critical foundation of cymbal production quality control. You’ll need to verify copper quality through spectral analysis before combining it with premium tin sources, guaranteeing a consistent 80/20 bronze alloy ratio. Test samples from each production batch using X-ray fluorescence to measure exact proportions.
You should maintain tight tolerances of ±0.5% in your copper-tin mixture, as even slight variations can affect the cymbal’s acoustic properties. Monitor the melting process with digital thermocouples to prevent tin loss through oxidation. When you detect any deviation from target ratios, immediately adjust your mixing parameters and document the correction in your quality control log. Regular calibration of testing equipment guarantees reliable measurements throughout production runs.
Trace Element Content Analysis
Beyond the primary copper-tin ratio, three critical trace elements require precise monitoring during cymbal production: lead, phosphorus, and zinc. You’ll need to perform trace element identification using X-ray fluorescence spectroscopy to maintain accurate control over these components. Lead content must stay below 0.03% to guarantee proper material ductility, while phosphorus levels between 0.04-0.06% help optimize grain structure.
Your impurity detection process should focus particularly on zinc contamination, which can’t exceed 0.02% without compromising the final cymbal’s sonic character. Regular sampling at 2-hour intervals during the melt phase will help you catch any deviation from these strict tolerances. When results indicate variance, you must immediately adjust your alloy mix and retest before continuing production.
Temperature-Controlled Casting Process
Maintaining precise temperature control during cymbal casting represents one of our most critical quality control steps. You’ll find that our advanced casting techniques rely on digital thermocouples positioned at three distinct points in the furnace, ensuring consistent bronze alloy temperatures between 2100°F and 2200°F throughout the pour.
We’ve implemented a dual-verification system where you can monitor both the molten metal and mold temperatures in real-time. The computerized temperature control system adjusts heating elements automatically, maintaining ideal casting conditions within ±5°F tolerance. Before each pour, you’ll need to verify the pyrometer readings against calibrated standards to prevent any deviation that could affect the cymbal’s molecular structure.
Through this rigorous approach, you’re able to achieve the ideal crystallization rate that defines premium cymbal sound characteristics. The system logs all temperature data, allowing you to trace any acoustic variations back to specific casting parameters.
Shape Formation and Thickness Measurement
You’ll achieve consistent cymbal profiles by monitoring press depth with digital gauges that measure displacement to within 0.1mm during the shaping process. Your quality control system maps thickness variations across the cymbal’s surface using ultrasonic sensors that create detailed topographical data. These measurements get compared against master templates to confirm each cymbal meets exact specifications for that model’s intended sound characteristics.
Press Depth Monitoring
While cymbal shaping may appear straightforward, precise press depth monitoring forms the cornerstone of consistent quality control during production. You’ll need to implement rigorous press calibration techniques to maintain ideal press operation efficiency across your production line.
| Press Depth (mm) | Cymbal Type | Quality Check Points |
|---|---|---|
| 12-15 | Splash | Edge curve, bell depth |
| 18-22 | Crash | Profile symmetry, taper |
| 25-30 | Ride | Bell definition, bow angle |
| 35-40 | Gong | Center displacement, rim height |
Monitor your hydraulic press settings continuously and adjust them based on real-time feedback from quality control measurements. You’ll find that maintaining consistent press depth directly correlates with the cymbal’s final tonal characteristics. Regular calibration checks confirm that each pressing achieves the intended profile specifications within tolerance limits.
Digital Thickness Mapping
Digital thickness mapping introduces precision measurement technology to analyze cymbal formation at a microscopic level. You’ll use advanced digital technology to scan the entire cymbal surface, creating detailed topographical data that guarantees consistent thickness across all production runs.
- High-resolution sensors capture thousands of measurement points to generate thorough thickness profiles
- Real-time data comparison against master templates identifies potential deviations before they affect sound quality
- Automated quality assurance systems flag areas that fall outside specified tolerances
This mapping process lets you maintain strict uniformity in your cymbal production while detecting subtle variations that could impact tonal characteristics. When integrated with your quality control system, digital mapping provides quantifiable data to validate manufacturing consistency and helps determine if additional hammering or lathing is needed.
Hammering Pattern Verification
Because each cymbal’s acoustic properties depend heavily on its hammering pattern, our quality control process includes a rigorous verification system. You’ll find detailed maps of every hammering point marked on transparent overlays that we place on each cymbal during inspection. These templates guarantee consistent spacing and depth across the entire surface.
Using specialized lighting and magnification tools, you’ll verify both machine and hand hammering techniques meet our strict standards. You’ll measure the distance between hammer marks, their depth, and overall distribution pattern. When you tap specific points on the cymbal, you’ll analyze the impact sound to confirm proper resonance characteristics.
You’ll document any deviations from the standard pattern in our digital tracking system. If you discover inconsistencies, the cymbal returns to production for corrective hammering. This careful attention to hammering verification guarantees each cymbal delivers the exact tonal qualities our clients expect.
Sonic Testing and Audio Analysis
After confirming proper hammering patterns, you’ll move each cymbal to our soundproof testing chamber for exhaustive sonic analysis. Using calibrated microphones and specialized software, you’ll measure sound clarity and frequency response across the entire surface. Our testing protocols guarantee each cymbal meets strict tonal requirements.
- Strike-point analysis at 8 equidistant positions to verify consistent sound projection and decay times
- Full-spectrum frequency measurement from 20Hz to 20kHz to confirm proper harmonic distribution
- Computerized comparison against reference models to detect any acoustic anomalies
You’ll document all test results in our quality control database, flagging any cymbals that don’t meet specifications. If a cymbal exhibits frequency response issues or lacks proper sound clarity, it’s immediately removed from production for evaluation. This systematic approach to sonic testing helps maintain our rigorous quality standards and guarantees every cymbal delivers the expected tonal characteristics.
Visual Inspection Protocols
While sonic testing confirms acoustic performance, thorough visual inspection remains critical for detecting surface defects and finish irregularities. You’ll need to examine each cymbal under bright, directional lighting that reveals subtle imperfections in the metal’s surface. Your inspection techniques should focus on both sides of the cymbal, checking for scratches, pits, or inconsistent hammering patterns.
During quality assurance, you must verify the uniformity of lathing grooves and ascertain proper spacing between each line. Check the bell’s symmetry and inspect the edge for any signs of warping or damage. You’ll want to examine the cymbal’s finish – whether brilliant or traditional – for proper coverage and adherence to specifications. Document any deviations using a standardized checklist that tracks common defects.
Pay special attention to brand stamps and logos, confirming proper depth, clarity, and placement according to manufacturer requirements. Flag any cymbals that don’t meet these strict visual standards for supervisor review.
Final Performance Evaluation
The final performance evaluation integrates all prior quality control measures into an extensive test of each cymbal’s real-world functionality. You’ll need to conduct thorough sound tests to verify performance consistency across all production batches. During the final sound evaluation, your team will assess each cymbal’s tonal characteristics, sustain, and projection in a controlled acoustic environment.
- Test the cymbal’s response across different playing techniques – from light taps to heavy strikes, examining crash, ride, and bell sounds
- Compare the cymbal’s sonic profile against established benchmark recordings and reference models to validate tonal consistency
- Document frequency analysis data using specialized audio equipment to confirm proper harmonic content
You’ll then cross-reference these performance results with earlier quality control checkpoints to identify any potential correlations between manufacturing variables and sound characteristics. This data helps maintain tight quality control while enabling continuous process improvement in your cymbal production line.
Conclusion
You’ll find our cymbal production precisely produces pristine pieces through persistent protocols. From meticulous material management to systematic sonic scrutiny, we’re dedicated to delivering distinctive quality. Through temperature-tracked casting, detailed dimensional documentation, and harmonious hammering verification, your cymbals consistently conform to critical criteria. Our thorough controls create confidence in every cymbal that completes our careful certification process.
